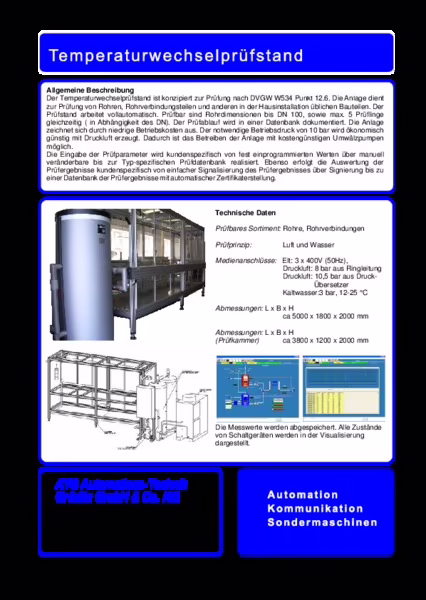

Alternating temperature test stand

The alternating temperature test stand has been designed for testing in accordance with DVGW W534 Article 12.6. The system is used to test pipes, pipe connection parts and other components common in house installations. The test stand works fully automatically. Pipe dimensions up to NS 100 and max. 5 test test specimens can be tested at the same time (depending on the NS). The test procedure is documented in a database.

The system stands out by its low operating costs. The required operating pressure of 10 bar is generated economically with compressed air. This allows for operating the system with budget-friendly circulation pumps. The test parameters input is realised in a customer-specific manner from permanently programmed values via manually changeable ones up to the type-specific test database. The test results are also evaluated customer-specifically, from simple signalling of the test result via signing to a database of the test results with automatic certificate generation.

The measured values are saved. All states of switching devices are shown in the visualisation.
alternating temperature test stand | ATG
alternating temperature test stand
test chamber accessible over the entire width | ATG
test chamber accessible over the entire width
display for visualisation | ATG
display for visualisation
alternating temperature test stand | ATG
alternating temperature test stand
alternating temperature test stand | ATG
alternating temperature test stand

Technical data

Testable range: pipes, pipe connections
Test principle: air and water


Utilities connections:
  • Elt: 3 x 400 V (50 Hz),
  • Compressed air: 8 bar from closed circular pipeline
  • Compressed air: 10.5 bar from pressure transmitter
  • Cold water: 3 bar, 12-25 °C
Dimensions:
L x w x h: ca. 5000 x 1800 x 2000 mm
Dimensions (test chamber):
L x w x h: ca. 3800 x 1200 x 2000 mm
