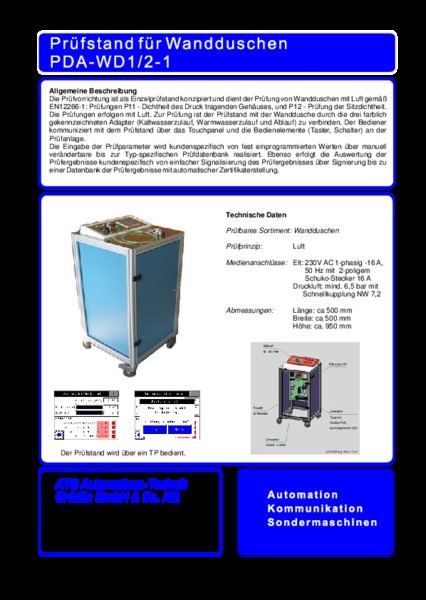

Test stand for wall-mounted showers PDA WD1/2-1

The test device has been designed as twin test stand and serves to test wall-mounted showers with air in accordance with EN12266-1: Tests P11 - tightness of the pressure-bearing housing, P12 - tightness test and valve function test. The tests are carried out with air. For testing purposes, the test stand must be connected to the wall shower using the three colour-coded adapters (cold water inlet, hot water inlet and outlet). The operator communicates with the test stand via the touch panel and the operating elements (buttons, switches) on the test system.

The test parameters input is realised in a customer-specific manner from permanently programmed values via manually changeable ones up to the type-specific test database. The test results are also evaluated customer-specifically, from simple signalling of the test result via signing to a database of the test results with automatic certificate generation.

The test stand is operated via a TP.

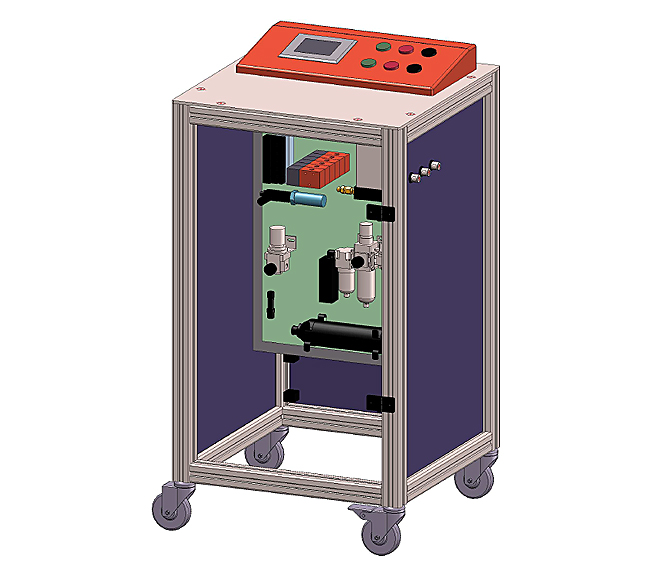

test stand PDA WD 1/2-1 | ATG
test stand PDA WD 1/2-1

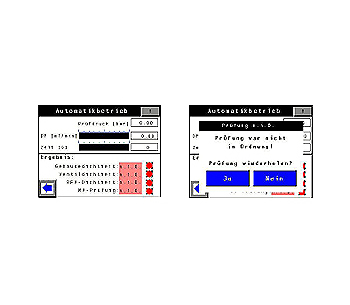

display for visualisation | ATG
display for visualisation

Technical data

Testable range: wall-mounted showers
Test principle: air

Utilities connections:
Elt:
  • 230V AC 1-phase -16 A,
  • 50 Hz with 2-pole
  • two-pin earthed plug 16 A
Compressed air:
  • min. 6.5 bar with quick coupling NS 7.2
Dimensions:
Length: ca. 500 mm
Width: ca. 500 mm
Height: ca. 950 mm
