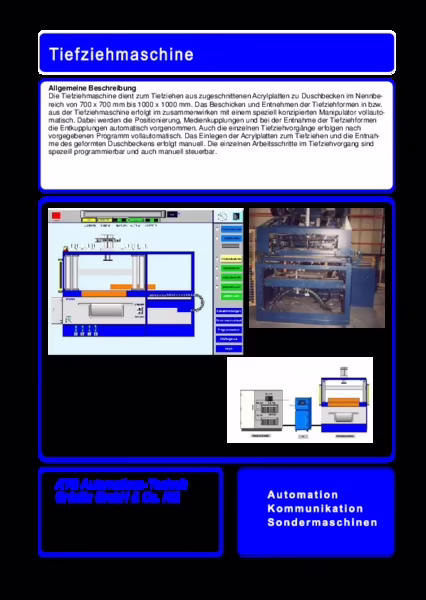

Thermoforming machine
The thermoforming machine is used to thermoform cut acrylic sheets to shower basins in a nominal range from 700 x 700 mm to 1000 x 1000 mm. The thermoforming machine is fed with and cleared from the thermoforming moulds fully automatically using a specially designed manipulator.
The positioning, coupling of media (and disconnecting them when the thermoformed moulds are removed) take place automatically. The individual thermoforming processes are also carried out fully automatically according to the specified program. The acrylic sheets to be thermoformed and the removal of the formed shower basin are done manually. The individual steps of the thermoforming process can be programmed separately and also be controlled manually.
The positioning, coupling of media (and disconnecting them when the thermoformed moulds are removed) take place automatically. The individual thermoforming processes are also carried out fully automatically according to the specified program. The acrylic sheets to be thermoformed and the removal of the formed shower basin are done manually. The individual steps of the thermoforming process can be programmed separately and also be controlled manually.
thermoforming machine
display for visualisation
Technical data:
Dimensions l x w x h:
2600 x 1600 x 3200 mm
Weight: ca. 2400 kg
Elt connection: 380 V / 50 Hz
Compressed air: 6 bar
2600 x 1600 x 3200 mm
Weight: ca. 2400 kg
Elt connection: 380 V / 50 Hz
Compressed air: 6 bar
